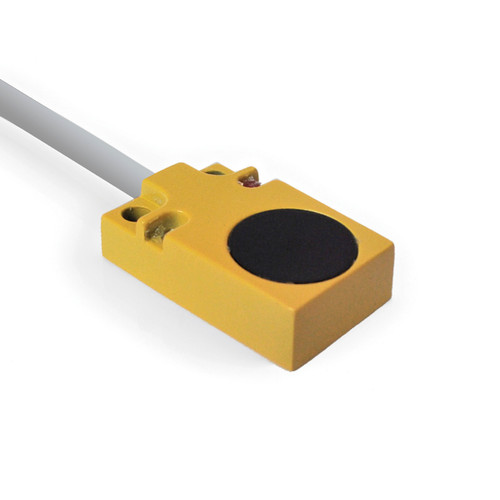

EQM1-2008C-ACU3

For PDF Spec:

For STEP File:

Type:

Extended Range Inductive Proximity Sensor

Shape:

Retangular

Dimensions:

46 mmx20 mmx10 mm

Sensing Range:

8 mm Range

Mounting Style:

Shielded

Output Type:

DC 2-wire

Output Function:

Normally Open

Connection:

3 Pin Quick Disconnect

Connector:

M8 Connector

Housing Material:

Chrome Plated Brass

Sensing Face Material:

PBT Plastic

IP Rating:

IP67

Operating Temperature:

-25 C - +70 C

Operating Voltage:

10-60 V DC

Current Consumption:

<10mA

Leakage Current:

<0.8mA

Max Current:

100mA

Overload Trip Point:

120mA

Surge Current:

-

Short Circuit Protected:

Yes

Reverse Polarity Protected:

Yes

Switching Frequency:

1KHz

Response Time:

0.2mS/0.2mS

EMC Rating:

RFI>3V/m / EFT>1kV / ESD>4Kv (contact)

Shock/Vibration Rating:

IEC 60497-5-2 Part 7.4.1&7.4.21

Weld Field Immune:

No

Weld Spatter Resistant:

No

Description:

8 mm, DC 2-Wire, Normally Open
