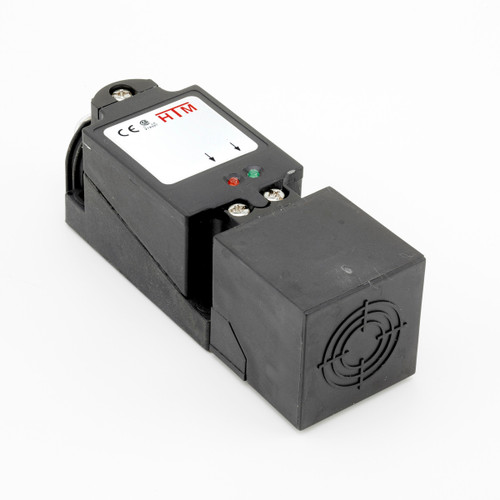

FQP1-4015U-AUS3

For PDF Spec:

For STEP File:

Type:

Inductive

Shape:

Square

Dimensions:

40 mmx40 mmx65 mm

Sensing Range:

15 mm Range

Mounting Style:

Shielded

Output Type:

AC/DC 2-wire

Output Function:

Normally Open

Connection:

3 Pin Quick Disconnect

Connector:

1/2-20UNF Connector

Housing Material:

PBT

Sensing Face Material:

PBT Plastic

IP Rating:

IP67

Operating Temperature:

-25 C - +70 C

Operating Voltage:

20-250 V AC, 50-60HZ; 20-250 V DC

Current Consumption:

<2.5 mA

Leakage Current:

<2.5 mA

Max Current:

200mA

Overload Trip Point:

>120 mA (DC Only)

Surge Current:

2.2 A for 20 ms

Short Circuit Protected:

Yes

Reverse Polarity Protected:

#N/A

Switching Frequency:

25Hz

Response Time:

10ms

EMC Rating:

RFI>3V/m / EFT>1kV / ESD>4Kv (contact)

Shock/Vibration Rating:

IEC 60497-5-2 Part 7.4.1&7.4.520

Weld Field Immune:

#N/A

Weld Spatter Resistant:

#N/A

Description:

Rectangular, 15 mm, AC/DC 2-Wire, Normally Open

Matching Cable:

U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector)
