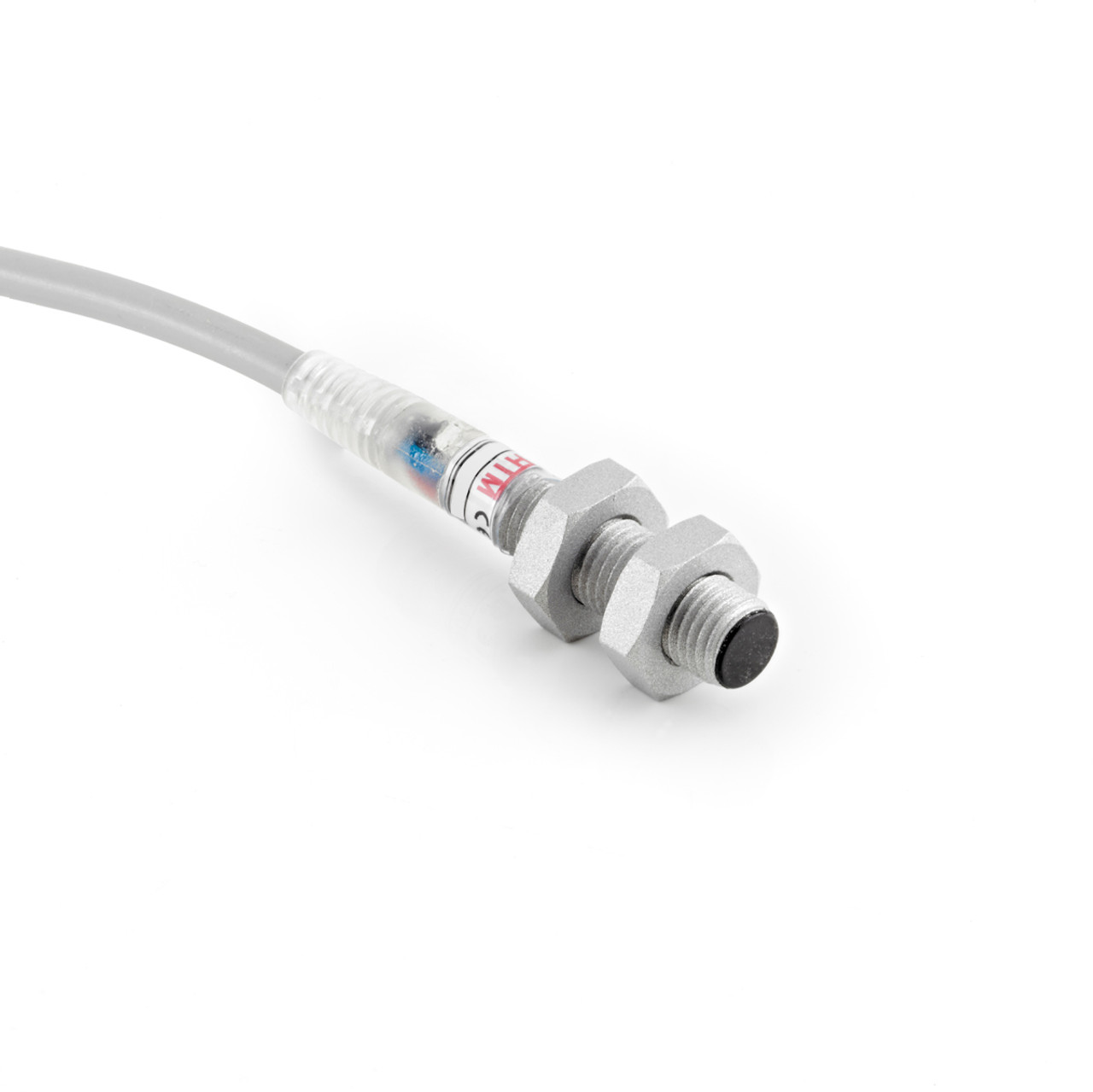

OCN1-0802N-A3S2-PTFE-100C

For PDF Spec:

For STEP File:

Type:

Extended Range General Purpose Sensors

Shape:

Cylindrical

Diameter:

M8

Sensing Range:

2 mm Range

Mounting Style:

Shielded

Output Type:

NPN

Output Function:

Normally Open

Connection:

Pre-Leaded 3 Wire

Connector:

2 m Cable

Body Length:

40 mm

Housing Material:

Stainless Steel SUS303

Sensing Face Material:

PBT Plastic

IP Rating:

IP67

Operating Temperature:

-20 C - +100 C

Operating Voltage:

10-30 V DC

Current Consumption:

<10 mA

Leakage Current:

<0.01 mA

Max Current:

200 mA

Overload Trip Point:

?å¥_220 mA

Surge Current:

-

Short Circuit Protected:

Yes

Reverse Polarity Protected:

Yes

Switching Frequency:

2 KHz

Response Time:

0.1 ms/0.1 ms

EMC Rating:

RFI>3V/m / EFT>1kV / ESD>4Kv (contact)

Shock/Vibration Rating:

IEC 60497-5-2 Part 7.4.1&7.4.2

Weld Field Immune:

No

Weld Spatter Resistant:

Yes - SpatterGuardª Coated

Description:

M8, 2 mm Range, NPN, Normally Open

Matching Bracket:

HRAB-08 (Basic) / QT-08 (Quick Release)
