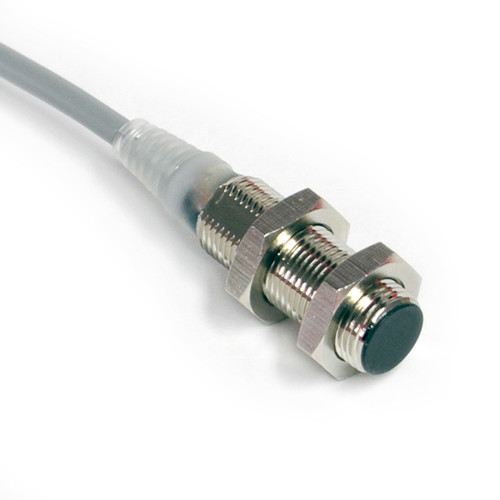

OCN1-1204C-A2S5/PUR

For PDF Spec:

For STEP File:

Type:

Extended Range General Purpose Sensors

Shape:

Cylindrical

Diameter:

M12

Sensing Range:

4 mm Range

Mounting Style:

Shielded

Output Type:

DC 2-wire

Output Function:

Normally Open

Connection:

Pre-Leaded 2 Wire

Connector:

5 m PUR Cable

Body Length:

50 mm

Housing Material:

Chrome Plated Brass

Sensing Face Material:

PBT Plastic

IP Rating:

IP67

Operating Temperature:

-25 C - +70 C

Operating Voltage:

10-60 V DC

Current Consumption:

-

Leakage Current:

<0.8mA

Max Current:

100mA

Overload Trip Point:

>120 mA

Surge Current:

-

Short Circuit Protected:

Yes

Reverse Polarity Protected:

No

Switching Frequency:

500 Hz

Response Time:

0.5 ms / 0.5 ms

EMC Rating:

RFI>3V/m / EFT>1kV / ESD>4Kv (contact)

Shock/Vibration Rating:

IEC 60497-5-2 Part 7.4.1&7.4.2

Weld Field Immune:

No

Weld Spatter Resistant:

No

Description:

M12, 4 mm Range, DC 2-Wire, Normally Open

Matching Bracket:

HRAB-12 (Basic) / QT-12 (Quick Release)
