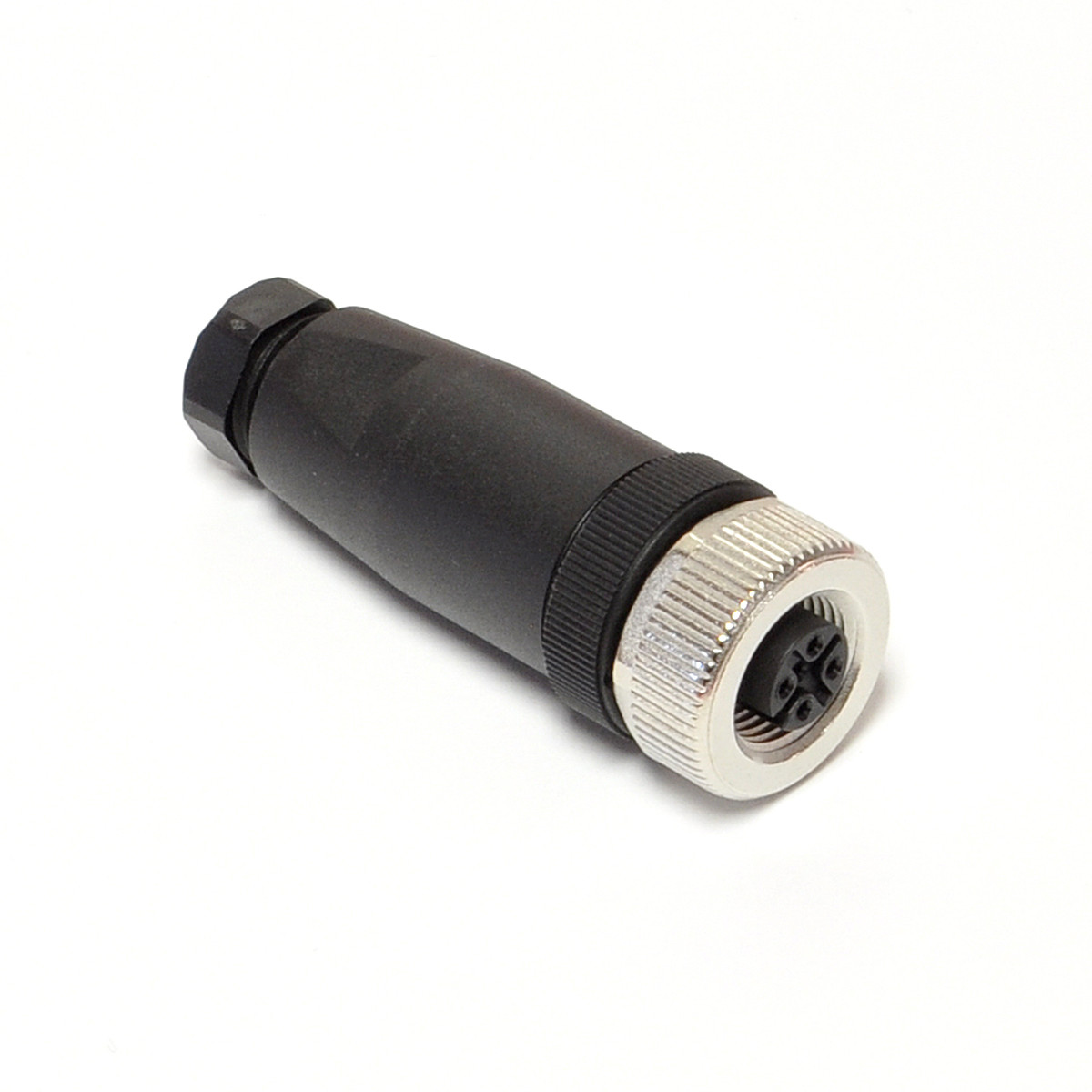

R-FS4KZ/PG7

For PDF Spec:

For STEP File:

Cable Type:

Field Connector

Connector B:

M12 A-Coded Female Straight

Poles:

4 Pin

Terminal Type:

Screw Terminal

Rated Current:

4 A

Rated Voltage:

250 V

Wire Gauge:

18 AWG Max

Contact Carrier:

PA6

Body:

PA6 + Glass Fiber

Contact Material:

CuZn

Contact Plating:

Au

Coupling Nut:

CuZn, Ni Plated

Protection Class:

IP 67

ORing:

NBR

Temperature Range:

-30 C - +85 C

Description:

Field Connector, M12 A-Coded Female Straight, 4 Pin, Screw Terminal
