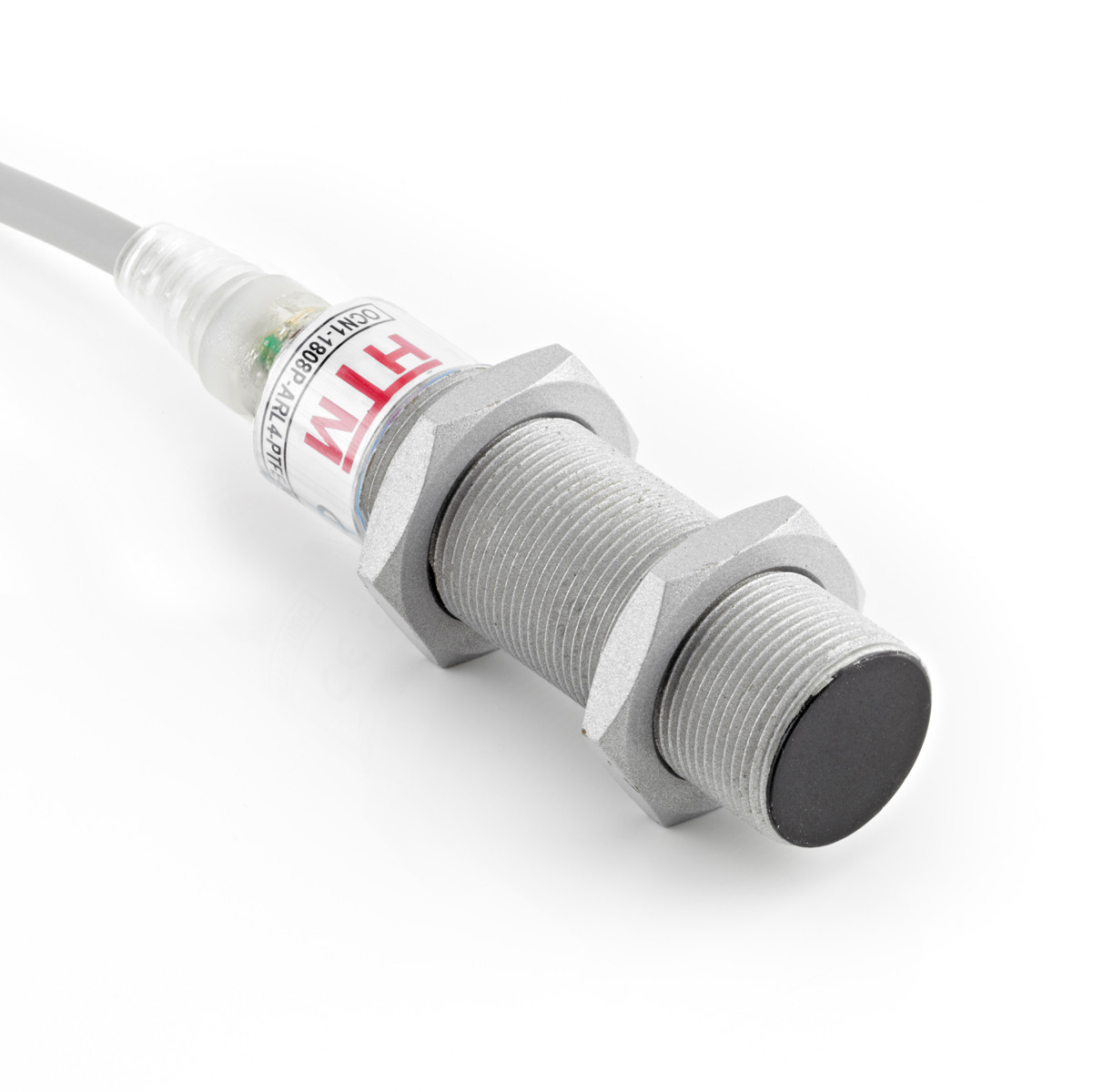

WCN1-1805U-B3L2-PTFE-100C

For PDF Spec:

For STEP File:

Type:

Weld Field Immune Proximity Sensors

Shape:

Cylindrical

Diameter:

M18

Sensing Range:

5 mm Range

Mounting Style:

Shielded

Output Type:

AC/DC

Output Function:

Normally Closed

Connection:

Pre-Leaded 3 Wire

Connector:

2 m Cable

Body Length:

81 mm

Housing Material:

SpatterGuard coated Brass

Sensing Face Material:

PBT Plastic

IP Rating:

IP67

Operating Temperature:

-20 C - +100 C

Operating Voltage:

20-250 V AC, 50-60HZ; 20-250 V DC

Current Consumption:

<2.5mA

Leakage Current:

<2.5mA

Max Current:

200 mA

Overload Trip Point:

-

Surge Current:

2.2 A for 20 ms

Short Circuit Protected:

Yes

Reverse Polarity Protected:

NO

Switching Frequency:

25 Hz AC; 40 Hz DC

Response Time:

10 ms/10 ms

EMC Rating:

RFI>3V/m / EFT>1kV / ESD>4Kv (contact)

Shock/Vibration Rating:

IEC 60497-5-2 Part 7.4.1&7.4.2

Weld Field Immune:

Yes

Weld Spatter Resistant:

Yes - SpatterGuardª Coated

Description:

M18, 5 mm Range, AC/DC, Normally Closed

Matching Bracket:

HRAB-18 (Basic) / QT-18 (Quick Release)
