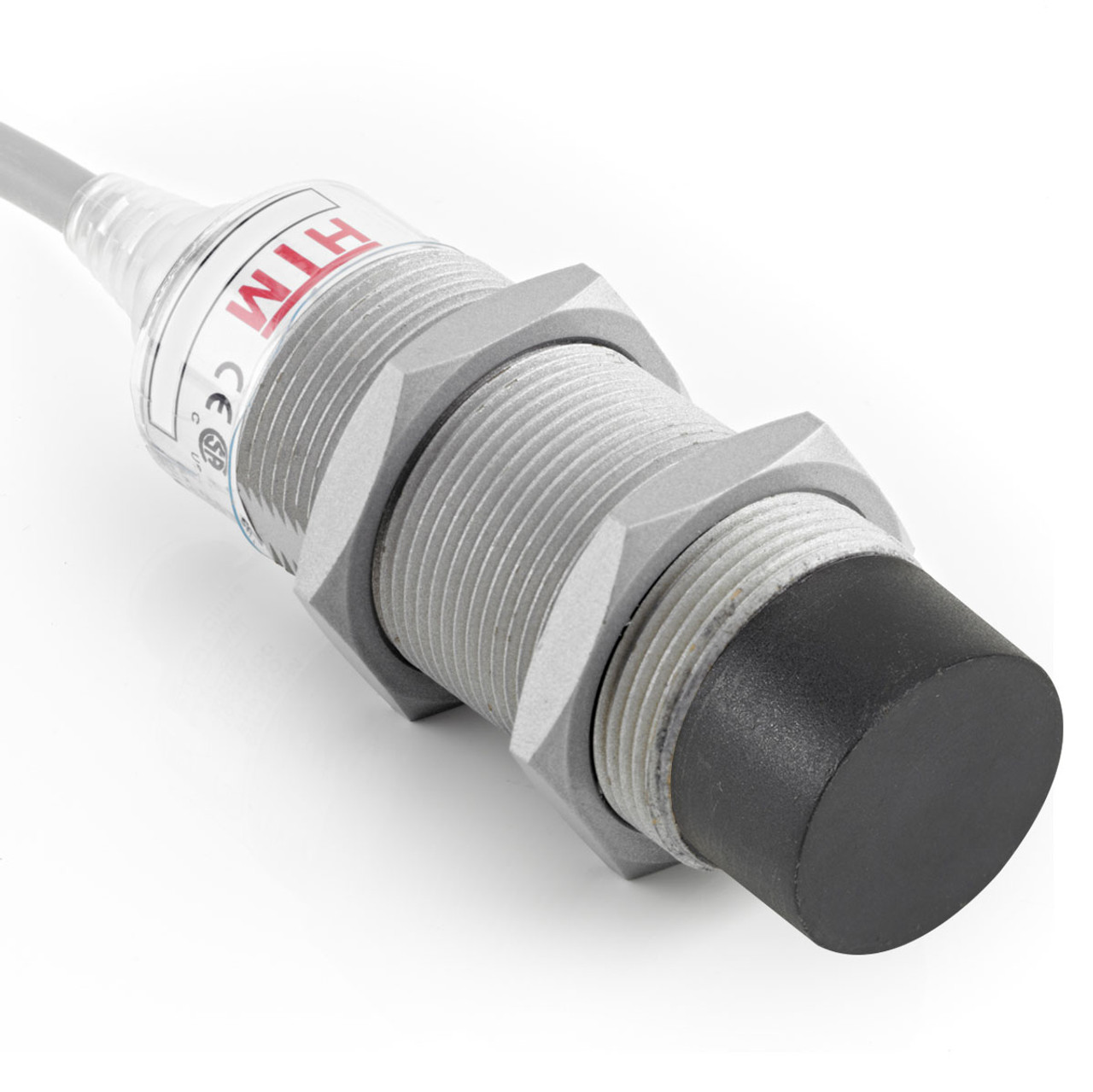

WCU2-3015A-A3L2

For PDF Spec:

For STEP File:

Type:

Weld Field Immune Proximity Sensors

Shape:

Cylindrical

Diameter:

M30

Sensing Range:

15 mm Range

Mounting Style:

Unshielded

Output Type:

AC

Output Function:

Normally Open

Connection:

Pre-Leaded 3 Wire

Connector:

2 m Cable

Body Length:

86

Housing Material:

Stainless Steel SUS303

Sensing Face Material:

PBT Plastic

IP Rating:

IP67

Operating Temperature:

-25 C - +70 C

Operating Voltage:

20-250 V AC

Current Consumption:

<1.8 mA

Leakage Current:

<1.8 mA

Max Current:

400 mA

Overload Trip Point:

-

Surge Current:

5 A (20 ms)

Short Circuit Protected:

NO

Reverse Polarity Protected:

NO

Switching Frequency:

<25 Hz

Response Time:

10 ms/10 ms

EMC Rating:

RFI>3V/m / EFT>1kV / ESD>4Kv (contact)

Shock/Vibration Rating:

IEC 60497-5-2 Part 7.4.1&7.4.2

Weld Field Immune:

Yes

Weld Spatter Resistant:

No

Description:

M30, 15 mm Range, AC, Normally Open

Matching Bracket:

HRAB-30 (Basic) / QT-30 (Quick Release)
